Low Temperature Chamber For Impact Test
- Introduction
- Specification
- Accessories
- Standard
- LEAFLET & VIDEO
- Contact Us

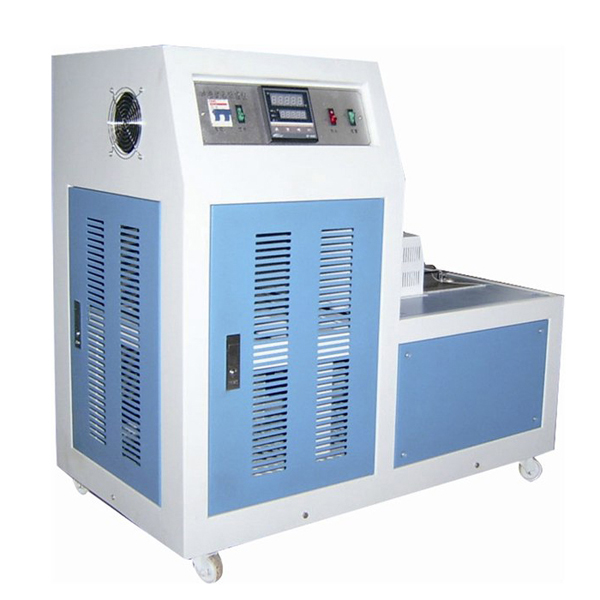

DWC low temperature chamber is a supplemental equipment for impact test under low temperature.
Use imported high quality compressor to refrigerate, single-chip micro processor control, auto control temperature, timing, alarm etc.;
Refrigeration fast, big volume; Digital display temperature value, safe and reliable, easy to operate.
| Model | DWC-40 | DWC-60 | DWC-80 | DWC-100 |
| Adjustable temperature range | -40℃ | -60℃ | -80℃ | -100℃ |
| Accuracy | ＜±0.5℃ | |||
| Chamber dimensions | 120×120×80mm | |||
| Contain specimen quantity | Max. 120 pcs | |||
| Cooling method | Compressor | |||
| Cooling medium | Ethanol or other non-freezing liquid | |||
| Model | DWC-196 | |||
| Temperature range | 0. ~ -196℃ | |||
| Temperature accuracy | <±1℃ | |||
| Control cabinet dimension(L*H*W) | 1400×650×850mm | |||
| Effective cooling space(L*H*W) | 120×120×80mm | |||
| Accommodation specimen number | 120 pcs (10×10×55mm) | |||
| Digital counter | 1sec to 99 min | |||
| Cooling method | Liquid nitrogen | |||
| Cooling medium | Ethanol or other non-freezing liquid | |||
| Power | 220V ~ 240V，50Hz，1.5kW | |||
Cooling equipment;
Specimen Tong.
Sample holder.
