wire terminal tensile fixture
- Introduction
- Specification
- Accessories
- Standard
- LEAFLET & VIDEO
- Contact Us

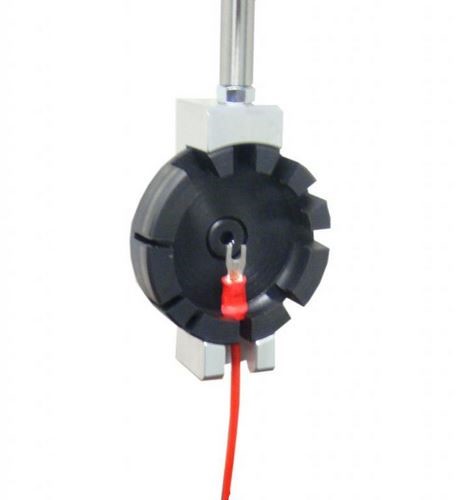

This versatile crimp termination holder that accommodates a wide range of terminals. The inner slotted ring rotates to adjust to fit 8 cable diameters, 1.5 to 5 mm. Used for BS 5G 178-1 and equivalent international standard test methods.
this fixture can use on 1KN wire terminal pull strength tester UTW-1, electronic Universal testing machine WDW-5Y, WDW-10Y etc.,
this fixture can use on 1KN wire terminal pull strength tester UTW-1, electronic Universal testing machine WDW-5Y, WDW-10Y etc.,
ASTM B913: Standard Test Method for Evaluation of Crimped Electrical Connections to 16-Gauge and Smaller Diameter Stranded and Solid Conductors.
ISO 1966: Crimped joints for aircraft electrical cables
ASTM F458: Standard Practice for Nondestructive Pull Testing of Wire Bonds1,2
EIA 364-08B: Crimp Tensile Strength Test Procedure for Electrical Connectors
SAE/AS 7928: Terminal, Lug, Splice, and Crimp Copper Strength Specifications
ISO 1966: Crimped joints for aircraft electrical cables
ASTM F458: Standard Practice for Nondestructive Pull Testing of Wire Bonds1,2
EIA 364-08B: Crimp Tensile Strength Test Procedure for Electrical Connectors
SAE/AS 7928: Terminal, Lug, Splice, and Crimp Copper Strength Specifications
